Comprehensive Guide to UML Class Diagrams
Introduction to Class Diagrams
Class diagrams are a fundamental part of the Unified Modeling Language (UML), used to illustrate the static structure of a system by showing the system’s classes, their attributes, operations (or methods), and the relationships among the classes. They are essential for visualizing and documenting the architecture of software systems.
When to Use Class Diagrams in the Software Development Lifecycle
1. Requirements Analysis
- Purpose: To capture and understand the domain model.
- Usage: Create high-level class diagrams to represent the main entities and their relationships as described in the requirements. This helps in validating requirements with stakeholders.
2. Design Phase
- Purpose: To design the system architecture.
- Usage: Develop detailed class diagrams that include all classes, attributes, methods, and relationships. This helps in defining the system’s structure and behavior.
3. Implementation Phase
- Purpose: To guide the coding process.
- Usage: Use class diagrams as a blueprint for writing code. Developers can refer to the diagrams to understand the structure and interactions of classes.
4. Testing Phase
- Purpose: To create test cases.
- Usage: Class diagrams help in identifying the classes and methods that need to be tested. They can be used to create unit tests and integration tests.
5. Maintenance Phase
- Purpose: To understand and modify the system.
- Usage: Class diagrams serve as documentation for the system’s structure. They help new developers understand the system quickly and make necessary modifications.
Key Concepts in Class Diagrams
1. Classes
- Definition: A class is a blueprint for creating objects. It defines the attributes (data) and operations (methods) that the objects will have.
- Representation: A rectangle divided into three compartments: class name, attributes, and methods.
2. Attributes
- Definition: Attributes are the data members of a class. They define the properties of the objects.
- Representation: Listed in the second compartment of the class rectangle.
3. Methods
- Definition: Methods are the operations that a class can perform. They define the behavior of the objects.
- Representation: Listed in the third compartment of the class rectangle.
4. Relationships
- Association: A general connection between classes.
- Aggregation: A whole-part relationship where the part can exist independently of the whole.
- Composition: A whole-part relationship where the part cannot exist independently of the whole.
- Inheritance: A relationship where one class (subclass) inherits attributes and methods from another class (superclass).
- Dependency: A relationship where one class depends on another class.
5. Visibility
- Public: Accessible from any other class.
- Private: Accessible only within the class.
- Protected: Accessible within the class and its subclasses.
- Package: Accessible within the same package.
6. Multiplicity
- Definition: Specifies the number of objects that can participate in a relationship.
- Representation: Noted at the ends of the association lines (e.g., 1, , 0..).
Examples of Class Diagrams
Example 1: Simple Class Diagram

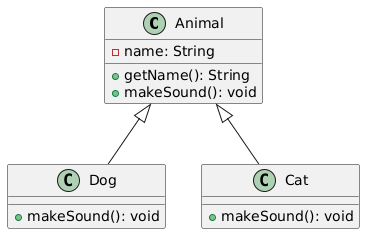

Example 2: Class Diagram with Inheritance
Example 3: Class Diagram with Aggregation
Example 4: Class Diagram with Composition
Example 5: Class Diagram with Dependency
Example 6: Class Diagram with Associations and Multiplicity
Best Practices for Creating Class Diagrams
- Start Simple: Begin with high-level classes and relationships. Add details gradually.
- Use Meaningful Names: Name classes, attributes, and methods clearly and concisely.
- Avoid Redundancy: Do not duplicate information. Use inheritance and associations to reuse code.
- Keep It Updated: Update the class diagram as the system evolves to reflect the current structure.
- Use Tools: Utilize UML tools like Visual Paradigm or PlantUML to create and maintain class diagrams.
Conclusion
Class diagrams are a powerful tool in the UML suite, providing a visual representation of the static structure of a system. They are used throughout the software development lifecycle to capture requirements, design the system, guide implementation, support testing, and aid in maintenance. By understanding the key concepts and following best practices, you can create effective class diagrams that enhance communication, documentation, and development processes.
