Introduction
Understanding how different components in a system interact over time is essential for designing robust, efficient systems. Sequence diagrams provide a clear and visual representation of the order in which interactions occur. Whether you’re modeling user interactions at an ATM or detailing backend processes within an enterprise application, these diagrams break down complex flows into digestible, sequential steps. This guide will introduce you to the basic elements of sequence diagrams, walk you through a practical case study—a bank withdrawal process—and offer a step-by-step approach to creating your own diagrams. By the end, you’ll have a solid foundation in using sequence diagrams as a tool for system analysis and design.
Below is a complete guide explaining sequence diagrams step by step, featuring a real-life case study. This guide describes how to model interactions between objects or components over time and provides accompanying diagram code that you can use to generate visuals.
─────────────────────────────
Overview
Sequence diagrams are used to capture and visualize the sequence of messages exchanged among objects or system components. They show the chronological order of interactions, typically from top to bottom. In these diagrams, lifelines represent the objects or participants, and messages represent method calls or signal exchanges, with arrows indicating the direction of the communication.
─────────────────────────────
Basic Elements of a Sequence Diagram
- Participants (Actors, Systems, or Objects)
Each participant is depicted with a name and a lifeline. The lifeline is represented as a vertical dashed line. - Activation Bars
When an object is active (processing a method call or handling an event), its activation is usually shown as a rectangle over its lifeline. - Messages
Arrows connecting participants represent messages. A synchronous call (which waits for a response) is shown with a solid line and a filled arrowhead. For return messages or asynchronous calls, different arrow styles may be used. - Combined Fragments (Optional)
Fragments such as loops, conditionals, and alternatives can be included to illustrate complex interactions or decision points.
─────────────────────────────
Case Study: Bank Withdrawal Process
In our case study, we’ll model a bank withdrawal process that involves a Customer, an ATM, and a Bank System. The Customer initiates a withdrawal request at the ATM, the ATM communicates with the Bank System to validate and process the withdrawal, and responses follow back through the ATM to inform the Customer.
Step 1: Identify the Participants
• Customer
• ATM Machine
• Bank System
Step 2: Outline the Interactions
• The Customer inserts a card and enters a PIN.
• The ATM sends an authentication request to the Bank System.
• The Bank System verifies the credentials and sends a validation result back to the ATM.
• The Customer enters the withdrawal amount.
• The ATM requests the Bank System to dispense funds.
• The Bank System processes the request, dispenses cash if approved, and informs the ATM.
• The ATM conveys the outcome back to the Customer.
Step 3: Model the Flow Step by Step
Using the brief steps above, we generate the sequence of messages and sometimes include activation bars for clarity.
─────────────────────────────
Sequence Diagram Code Example
Below is the diagram code representing the bank withdrawal process:

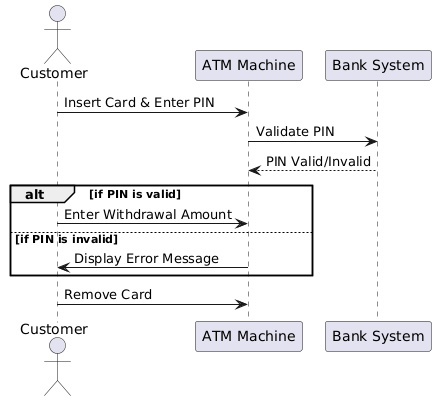

Explanation of the Diagram
• The diagram starts at the top with the Customer initiating the withdrawal process by inserting a card and entering a PIN at the ATM.
• The ATM then passes on the authentication request to the Bank System, which checks the PIN and sends back a validation response.
• An alternative fragment (“alt”) is used to represent two possible scenarios: one if the PIN is valid, and another if it is invalid.
• In the valid branch, the Customer provides the withdrawal amount, and the ATM sends the request to the Bank System. Feedback (whether cash is dispensed or there is an error) flows back from the Bank System to the ATM, which then informs the Customer.
• If the PIN was invalid, the ATM notifies the Customer immediately.
• Finally, the Customer removes the card, ending the sequence.
─────────────────────────────
Step-by-Step Guide Recap
- Define your participants.
- List the steps in the communication process.
- Map out the interactions in sequential order from top (first message) to bottom (last message).
- Include combined fragments (loops, alternative flows, etc.) where decision points exist.
- Add activation bars to emphasize processing periods if desired.
- Verify the logic: ensure that the sequence correctly represents all possible paths in the interaction.
─────────────────────────────
Conclusion
Sequence diagrams are an excellent tool for visualizing the flow of interactions between multiple components. By carefully mapping the steps, conditions, and participants, one can clearly communicate the system’s behavior. Use this case study as a template for modeling other processes – breaking interactions down into well-defined steps helps improve understanding and ensures a thorough analysis of the system’s operations.
Sequence diagrams also serve as a powerful tool to communicate complex interactions clearly and concisely. By mapping out every step of a process—from initial trigger to final outcome—you gain valuable insights into system behavior and potential points of failure. This guide emphasized identifying participants, outlining interactions, and employing alternative flows to account for different scenarios. Whether you’re collaborating with a development team or refining your design during a project, these diagrams can help streamline communication and guide system improvements. Embrace the structured approach provided here, and you’ll be well-equipped to create effective sequence diagrams for any project.
Feel free to adjust the code parameters, add further details such as notes, loops, or conditions, and refine the interactions in the diagram to suit your system’s complexity.
