Designing Efficient ATM Systems: A Comprehensive Use Case Diagram Approach

Introduction

The Automated Teller Machine (ATM) is a critical component of modern banking, providing customers with convenient access to their funds and account information. To effectively design and implement an ATM system, it is essential to understand the various interactions between users and the machine. A use case diagram is a valuable tool in this process, as it visually represents the functionalities of the system from the perspective of its users.

This diagram helps identify the primary actors—such as customers and bank administrators—and outlines the key use cases they engage with, including withdrawing cash, depositing funds, checking balances, and accessing administrative functions. By analyzing these interactions, developers and stakeholders can ensure that the ATM system meets user needs and provides a seamless banking experience.

Creating an ATM use case diagram involves identifying the key interactions between users (actors) and the ATM system. Below is a structured approach to developing an ATM use case diagram, including a use case template, key concepts, tips, and guidelines.

Key Concepts

Actors: Entities that interact with the system. For an ATM, actors typically include the Customer and Bank Administrator.
Use Cases: Specific interactions or functions that actors perform with the system.
System Boundary: Defines the scope of the system being modeled.
Relationships: Connections between actors and use cases, indicating who initiates which actions.

Use Case Template

Use Case Name	Description	Actors Involved	Preconditions	Postconditions	Main Success Scenario	Extensions/Alternatives
Withdraw Cash	Allows a customer to withdraw cash from their account.	Customer	Valid ATM card, Correct PIN	Cash dispensed, Transaction recorded	1. Insert ATM card 2. Enter PIN 3. Select withdrawal 4. Enter amount 5. Receive cash 6. Transaction complete	Incorrect PIN, Insufficient funds
Deposit Cash	Allows a customer to deposit cash into their account.	Customer	Valid ATM card, Correct PIN	Cash deposited, Transaction recorded	1. Insert ATM card 2. Enter PIN 3. Select deposit 4. Insert cash 5. Confirm deposit 6. Transaction complete	Cancel deposit, Invalid cash input
Check Balance	Allows a customer to check their account balance.	Customer	Valid ATM card, Correct PIN	Balance displayed	1. Insert ATM card 2. Enter PIN 3. Select check balance 4. View balance	N/A
Transfer Funds	Allows a customer to transfer funds between accounts.	Customer	Valid ATM card, Correct PIN	Funds transferred, Transaction recorded	1. Insert ATM card 2. Enter PIN 3. Select transfer funds 4. Enter recipient details 5. Enter amount 6. Confirm transfer 7. Transaction complete	Invalid recipient, Insufficient funds
Admin Access	Allows a bank administrator to access administrative functions.	Bank Administrator	Valid admin credentials	Access granted to admin functions	1. Enter admin credentials 2. Access admin menu	Invalid credentials

Tips and Tricks

Identify All Actors: Ensure all potential users of the system are identified as actors.
Focus on Goals: Each use case should represent a goal the actor wants to achieve.
Keep It Simple: Use clear and concise language to describe use cases.
Consider Extensions: Think about alternative paths or exceptions that might occur.
Iterate: Use case diagrams are iterative; refine them as you gather more requirements.

Guidelines

Define Clear Boundaries: Clearly define what is inside and outside the system’s scope.
Use Consistent Naming: Maintain consistency in naming actors and use cases.
Prioritize Use Cases: Focus on the most critical use cases first.
Validate with Stakeholders: Ensure that the use cases align with stakeholder expectations.
Document Assumptions: Note any assumptions made during the creation of use cases.

Example Use Case Diagram

To visualize the ATM use case diagram, you can use tools like Visual Paradigm UML diagramming tool.

Explanation:

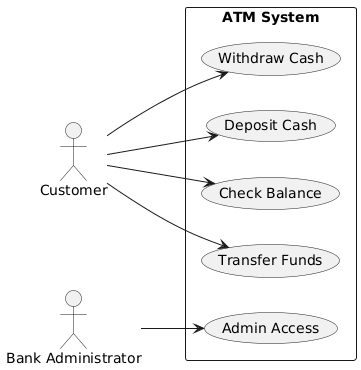

Actors: Customer and Bank Administrator are the actors interacting with the ATM system.
Use Cases: The use cases are represented within the rectangle labeled “ATM System”.
Relationships: Arrows indicate which actor initiates each use case.

Conclusion

The ATM use case diagram provides a clear and concise overview of how different actors interact with the ATM system to achieve their goals. By identifying key use cases such as withdrawing cash, depositing funds, and checking balances, the diagram helps in understanding the system’s functionality from a user-centric perspective. This visual representation is invaluable for developers, as it aids in designing a system that is intuitive and efficient for end-users. Furthermore, it serves as a communication tool for stakeholders, ensuring that the system aligns with their expectations and requirements. Ultimately, the use case diagram is a foundational element in the development process, guiding the creation of an ATM system that delivers a reliable and user-friendly banking experience.
